B-RAD-S series
- Torque range: 70 – 7.000 Nm
The B-RAD-S battery torque wrench is equipped with the latest strain gauge torque transducer technology. Which constantly measures and adjusts the torque output (closed loop). Making these tools insensitive to changing bolt conditions such as friction, temperature and joint hardness. The transducer is also located at the end of the power multiplier. With other brands that supply torque wrenches with transducer, this is located between the engine and the power multiplier.
Non-impacting
Safe & Reliable
According to European standards
Lithium-ion battery
Bluetooth connectivity
Software data exchange
Torque + angle function
Due to these properties, factors such as wear or defects in the force multiplier, the lubrication of the bolt, the ambient temperature and the hardness of the connection have no influence on the result.
Thanks to RAD’s transducer technology, a very high accuracy is achieved. With the built-in torque transducer, a very high accuracy can be achieved and it guarantees that the displayed torque is the actual torque applied to the bolt (according to the VDI/VDE 2862-2 standards).
- Brushless motor
- Transducer
- Torque + angle limits
- Data logging
- Bluetooth connectivity
- Torque check function
- Bolt counter
- Torque control in anticlockwise rotation
- Multi-user level password protection
- Automatic reaction arm release
- Selectable menu languages
- Intelligent counter for life cycle and maintenance
- Controlled bolting – repeatability of +/- 2%
- Extremely low noise level – only 80 dB
- Lithium-ion 18V / 5.2 Ah battery technology
All B-RAD-S tools include:
- Reaction arm and retaining ring
- 2 Lithium-ion 18V/5.2 Ah batteries with charger (For the B-RAD 4000-S & 7000-S: 1x 5.2 Ah and 1x 8.0 Ah)
- Weatherproof storage case
- Documentation software on USB stick
- User manual
- Calibration certificate

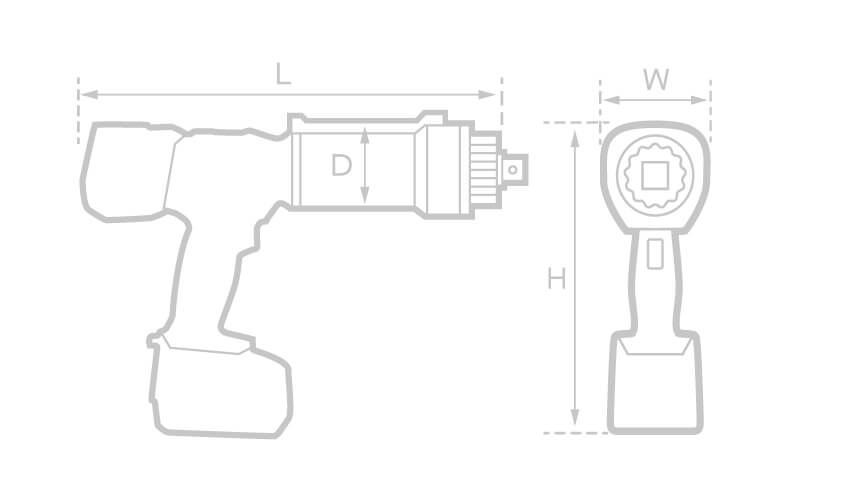

Product overview
| {"lang-en": "Prod.no.", "lang-nl": "Art.nr.", "lang-de": "Prod.nr", "lang-it": "N. Prod.", "lang-es": "Prod. n.º", "lang-fr": "N° de prod.", "lang-da": "Prod.nr.", "lang-tr": "Ürün no."} | {"lang-en": "Model", "lang-nl": "Model", "lang-de": "Modell", "lang-it": "Modello", "lang-es": "Modelo", "lang-fr": "Modèle", "lang-da": "Model", "lang-tr": "Model"} | {"lang-en": "Square drive", "lang-nl": "Aandrijfvierkant", "lang-de": "Vierkant- antrieb", "lang-it": "Azionamento quadrato", "lang-es": "Accionamiento cuadrado", "lang-fr": "Entraînement à section carrée", "lang-da": "Firkantet drev", "lang-tr": "Kare tahrik ucu"} | {"lang-en": "Torque range", "lang-nl": "Momentbereik", "lang-de": "Drehmoment- bereich", "lang-it": "Range di coppia", "lang-es": "Rango de par", "lang-fr": "Plage de couple", "lang-da": "Momentområde", "lang-tr": "Tork araligi"} | {"lang-en": "RPM", "lang-nl": "TPM", "lang-de": "Drehzahl", "lang-it": "GIRI/MIN", "lang-es": "RPM", "lang-fr": "t/min", "lang-da": "O/M", "lang-tr": "Devir/Dak"} | {"lang-en": "Weight", "lang-nl": "Gewicht", "lang-de": "Gewicht", "lang-it": "Peso", "lang-es": "Peso", "lang-fr": "Poids", "lang-da": "Agirlik", "lang-tr": "Agirlik"} | {"lang-en": "Dim. L", "lang-nl": "Afm. L", "lang-de": "Maße L", "lang-it": "Dim. L", "lang-es": "Dim. L", "lang-fr": "Dim. L", "lang-da": "Dim. L", "lang-tr": "Boyut L"} | {"lang-en": "Dim. D", "lang-nl": "Afm. D", "lang-de": "Maße D", "lang-it": "Dim. D", "lang-es": "Dim. D", "lang-fr": "Dim. D", "lang-da": "Dim. D", "lang-tr": "Boyut D"} | {"lang-en": "Dim. W", "lang-nl": "Afm. W", "lang-de": "Maße W", "lang-it": "Dim. W", "lang-es": "Dim. W", "lang-fr": "Dim. W", "lang-da": "Dim. W", "lang-tr": "Boyut W"} | {"lang-en": "Dim. H", "lang-nl": "Afm. H", "lang-de": "Maße H", "lang-it": "Dim. H", "lang-es": "Dim. H", "lang-fr": "Dim. H", "lang-da": "Dim. H", "lang-tr": "Boyut H"} |
|---|---|---|---|---|---|---|---|---|---|
| 🠋 31801 | B-RAD 700-S | ¾" | 70 - 700 Nm | 21 | 5,3 Kg | 315 mm | 69 mm | 69 mm | 262 mm |
| 🠋 31803 | B-RAD 1400-S | ¾" | 140 - 1.400 Nm | 10 | 5,3 Kg | 315 mm | 69 mm | 69 mm | 262 mm |
| 🠋 31805 | B-RAD 2000-S | 1" | 200 - 2.000 Nm | 6 | 5,8 Kg | 321 mm | 74 mm | 74 mm | 262 mm |
| 🠋 31807 | B-RAD 4000-S | 1" | 400 - 4.000 Nm | 3 | 7,8 Kg | 337 mm | 86 mm | 86 mm | 266 mm |
| 🠋 31809 | B-RAD 7000-S | 1,5" | 700 - 7.000 Nm | 2 | 10,6 Kg | 362 mm | 100 mm | 100 mm | 272 mm |
*Tilt screen for optimal image
| {“lang-en”: “Prod.no.”, “lang-nl”: “Art.nr.”, “lang-de”: “Prod.nr”, “lang-it”: “N. Prod.”, “lang-es”: “Prod. n.º”, “lang-fr”: “N° de prod.”, “lang-da”: “Prod.nr.”, “lang-tr”: “Ürün no.”} | {“lang-en”: “Model”, “lang-nl”: “Model”, “lang-de”: “Modell”, “lang-it”: “Modello”, “lang-es”: “Modelo”, “lang-fr”: “Modèle”, “lang-da”: “Model”, “lang-tr”: “Model”} | {“lang-en”: “Square drive”, “lang-nl”: “Aandrijfvierkant”, “lang-de”: “Vierkant- antrieb”, “lang-it”: “Azionamento quadrato”, “lang-es”: “Accionamiento cuadrado”, “lang-fr”: “Entraînement à section carrée”, “lang-da”: “Firkantet drev”, “lang-tr”: “Kare tahrik ucu”} | {“lang-en”: “Torque range”, “lang-nl”: “Momentbereik”, “lang-de”: “Drehmoment- bereich”, “lang-it”: “Range di coppia”, “lang-es”: “Rango de par”, “lang-fr”: “Plage de couple”, “lang-da”: “Momentområde”, “lang-tr”: “Tork araligi”} | {“lang-en”: “RPM”, “lang-nl”: “TPM”, “lang-de”: “Drehzahl”, “lang-it”: “GIRI/MIN”, “lang-es”: “RPM”, “lang-fr”: “t/min”, “lang-da”: “O/M”, “lang-tr”: “Devir/Dak”} | {“lang-en”: “Weight”, “lang-nl”: “Gewicht”, “lang-de”: “Gewicht”, “lang-it”: “Peso”, “lang-es”: “Peso”, “lang-fr”: “Poids”, “lang-da”: “Agirlik”, “lang-tr”: “Agirlik”} | {“lang-en”: “Dim. L”, “lang-nl”: “Afm. L”, “lang-de”: “Maße L”, “lang-it”: “Dim. L”, “lang-es”: “Dim. L”, “lang-fr”: “Dim. L”, “lang-da”: “Dim. L”, “lang-tr”: “Boyut L”} | {“lang-en”: “Dim. D”, “lang-nl”: “Afm. D”, “lang-de”: “Maße D”, “lang-it”: “Dim. D”, “lang-es”: “Dim. D”, “lang-fr”: “Dim. D”, “lang-da”: “Dim. D”, “lang-tr”: “Boyut D”} | {“lang-en”: “Dim. W”, “lang-nl”: “Afm. W”, “lang-de”: “Maße W”, “lang-it”: “Dim. W”, “lang-es”: “Dim. W”, “lang-fr”: “Dim. W”, “lang-da”: “Dim. W”, “lang-tr”: “Boyut W”} | {“lang-en”: “Dim. H”, “lang-nl”: “Afm. H”, “lang-de”: “Maße H”, “lang-it”: “Dim. H”, “lang-es”: “Dim. H”, “lang-fr”: “Dim. H”, “lang-da”: “Dim. H”, “lang-tr”: “Boyut H”} |
|---|---|---|---|---|---|---|---|---|---|
| 🠋 31801 | B-RAD 700-S | ¾” | 70 – 700 Nm | 21 | 5,3 Kg | 315 mm | 69 mm | 69 mm | 262 mm |
| 🠋 31803 | B-RAD 1400-S | ¾” | 140 – 1.400 Nm | 10 | 5,3 Kg | 315 mm | 69 mm | 69 mm | 262 mm |
| 🠋 31805 | B-RAD 2000-S | 1″ | 200 – 2.000 Nm | 6 | 5,8 Kg | 321 mm | 74 mm | 74 mm | 262 mm |
| 🠋 31807 | B-RAD 4000-S | 1″ | 400 – 4.000 Nm | 3 | 7,8 Kg | 337 mm | 86 mm | 86 mm | 266 mm |
| 🠋 31809 | B-RAD 7000-S | 1,5″ | 700 – 7.000 Nm | 2 | 10,6 Kg | 362 mm | 100 mm | 100 mm | 272 mm |
Optional: 8.0 Ah high performance battery
The combination of new high-performance battery cells and completely newly developed electronic components in the pack ensure that maximum power remains available for a longer time. So you can now tighten even more bolts compared to the already impressively performing 5.2 Ah batteries.
The B-RAD SELECT / MB-RAD / B-RAD OFFSET 4000 & 7000 come standard with 1 x 8.0 Ah battery and 1 x 5.2 Ah battery, instead of 2 x 5.2 Ah batteries. Thanks to the 8.0 Ah battery, the extremely powerful battery torque wrenches can tighten even more bolts.
The 8.0 Ah battery can also be ordered for the B-RAD SELECT / OFFSET 275, 700, 1400 and 2000.
Part number: 200473
Optional: Double Safety Button
This system dramatically reduces the pinching risk with the reaction arm as it forces the operator to hold two hands on the tool handle at all times.
Part number: 25949
