Home > RAD Torque > Torque wrenches > Battery > SELECT
B-RAD SELECT Battery Series
- Torque range: 50 – 7.000 Nm
Over the years, RAD has invested a lot in the development of battery torque wrenches, which has resulted in many innovations. The power that RAD’s current battery torque wrenches can deliver (up to 7,000 Nm!) was unimaginable a few years ago, as was the enormous capacity of the lithium-ion batteries.
Non-impacting
Safe & Reliable
According to European standards
Lithium-ion battery
Especially the compact design of the power multiplier makes the battery torque wrenches widely applicable. The compact design also ensures a low construction height and the lowest weight in its class. Thanks in part to the low weight and extended torque range of the battery torque wrenches, RAD has maintained its lead in the market.
At the four-digit display the set torque value is displayed. The B-RAD SELECT remembers the last set torque value even after the battery has been removed.
RAD’s proven planetary drive technology combined with the new lithium-ion battery makes the B-RAD the ideal partner in situations where high mobility and high power is required.
- Brushless motor
- Available in single and automatic 2-speed gearbox
- Controlled bolting – repeatability of +/- 3%
- Extremely low noise level – only 65 dB
- Automatic reaction arm release
- Possibility to set torque in 1-50 levels instead of torque settings
B-RAD SELECT tools include:
- Reaction arm and retaining ring
- 2 Lithium-ion 18V/5.2 Ah batteries with charger (For the B-RAD SELECT 4000 & 7000: 1x 5.5 Ah and 1x 8.0 Ah)
- Tool handle & hanger with the B-RAD SELECT 4000 & 7000
- Weatherproof storage case
- User manual
- Calibration certificate
Product overview

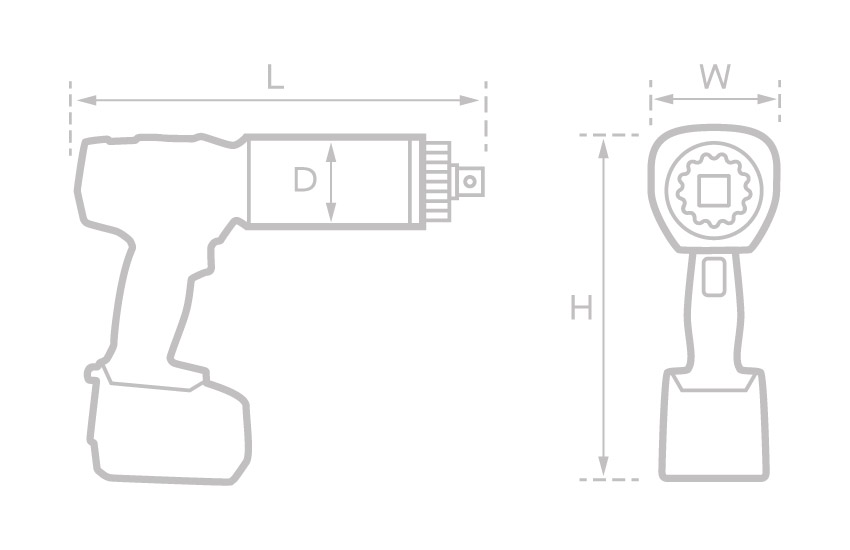

{"lang-en": "Prod.no.", "lang-nl": "Art.nr.", "lang-de": "Prod.nr", "lang-it": "N. Prod.", "lang-es": "Prod. n.º", "lang-fr": "N° de prod.", "lang-da": "Prod.nr.", "lang-tr": "Ürün no."} | {"lang-en": "Model", "lang-nl": "Model", "lang-de": "Modell", "lang-it": "Modello", "lang-es": "Modelo", "lang-fr": "Modèle", "lang-da": "Model", "lang-tr": "Model"} | {"lang-en": "Square drive", "lang-nl": "Aandrijfvierkant", "lang-de": "Vierkant- antrieb", "lang-it": "Azionamento quadrato", "lang-es": "Accionamiento cuadrado", "lang-fr": "Entraînement à section carrée", "lang-da": "Firkantet drev", "lang-tr": "Kare tahrik ucu"} | {"lang-en": "Torque range", "lang-nl": "Momentbereik", "lang-de": "Drehmoment- bereich", "lang-it": "Range di coppia", "lang-es": "Rango de par", "lang-fr": "Plage de couple", "lang-da": "Momentområde", "lang-tr": "Tork araligi"} | {"lang-en": "RPM", "lang-nl": "TPM", "lang-de": "Drehzahl", "lang-it": "GIRI/MIN", "lang-es": "RPM", "lang-fr": "t/min", "lang-da": "O/M", "lang-tr": "Devir/Dak"} | {"lang-en": "Weight", "lang-nl": "Gewicht", "lang-de": "Gewicht", "lang-it": "Peso", "lang-es": "Peso", "lang-fr": "Poids", "lang-da": "Agirlik", "lang-tr": "Agirlik"} | {"lang-en": "Dim. L", "lang-nl": "Afm. L", "lang-de": "Maße L", "lang-it": "Dim. L", "lang-es": "Dim. L", "lang-fr": "Dim. L", "lang-da": "Dim. L", "lang-tr": "Boyut L"} | {"lang-en": "Dim. D", "lang-nl": "Afm. D", "lang-de": "Maße D", "lang-it": "Dim. D", "lang-es": "Dim. D", "lang-fr": "Dim. D", "lang-da": "Dim. D", "lang-tr": "Boyut D"} | {"lang-en": "Dim. W", "lang-nl": "Afm. W", "lang-de": "Maße W", "lang-it": "Dim. W", "lang-es": "Dim. W", "lang-fr": "Dim. W", "lang-da": "Dim. W", "lang-tr": "Boyut W"} | {"lang-en": "Dim. H", "lang-nl": "Afm. H", "lang-de": "Maße H", "lang-it": "Dim. H", "lang-es": "Dim. H", "lang-fr": "Dim. H", "lang-da": "Dim. H", "lang-tr": "Boyut H"} |
---|---|---|---|---|---|---|---|---|---|
🠋 30213 | B-RAD SELECT 275 | ½" | 50 - 270 Nm | 47,0 | 3,2 Kg | 228 mm | 63 mm | 67 mm | 262 mm |
🠋 29594 | B-RAD SELECT 275 | ¾" | 50 - 270 Nm | 47,0 | 3,2 Kg | 228 mm | 63 mm | 67 mm | 262 mm |
🠋 28264 | B-RAD SELECT 700 | ¾" | 170 - 700 Nm | 21,5 | 3,5 Kg | 231 mm | 63 mm | 67 mm | 262 mm |
🠋 28266 | B-RAD SELECT 1400 | ¾" | 270 - 1.400 Nm | 10,5 | 3,5 Kg | 231 mm | 63 mm | 67 mm | 262 mm |
🠋 28267 | B-RAD SELECT 1400-2 | ¾" | 540 - 1.400 Nm | 71,0 | 4,3 Kg | 279 mm | 63 mm | 67 mm | 262 mm |
🠋 28268 | B-RAD SELECT 2000 | 1" | 400 - 2.000 Nm | 6,0 | 4,0 Kg | 244 mm | 69 mm | 69 mm | 262 mm |
🠋 28269 | B-RAD SELECT 2000-2 | 1" | 400 - 2.000 Nm | 19,5 | 4,9 Kg | 298 mm | 69 mm | 69 mm | 262 mm |
🠋 28270 | B-RAD SELECT 4000 | 1" | 800 - 4.000 Nm | 3,0 | 6,0 Kg | 285 mm | 81 mm | 81 mm | 266 mm |
🠋 28271 | B-RAD SELECT 4000-2 | 1" | 800 - 4.000 Nm | 20,0 | 6,7 Kg | 337 mm | 81 mm | 81 mm | 266 mm |
🠋 28272 | B-RAD SELECT 7000 | 1½" | 1.350 - 7.000 Nm | 2,1 | 8,8 Kg | 295 mm | 95 mm | 95 mm | 272 mm |
*Tilt screen for optimal image
{“lang-en”: “Prod.no.”, “lang-nl”: “Art.nr.”, “lang-de”: “Prod.nr”, “lang-it”: “N. Prod.”, “lang-es”: “Prod. n.º”, “lang-fr”: “N° de prod.”, “lang-da”: “Prod.nr.”, “lang-tr”: “Ürün no.”} | {“lang-en”: “Model”, “lang-nl”: “Model”, “lang-de”: “Modell”, “lang-it”: “Modello”, “lang-es”: “Modelo”, “lang-fr”: “Modèle”, “lang-da”: “Model”, “lang-tr”: “Model”} | {“lang-en”: “Square drive”, “lang-nl”: “Aandrijfvierkant”, “lang-de”: “Vierkant- antrieb”, “lang-it”: “Azionamento quadrato”, “lang-es”: “Accionamiento cuadrado”, “lang-fr”: “Entraînement à section carrée”, “lang-da”: “Firkantet drev”, “lang-tr”: “Kare tahrik ucu”} | {“lang-en”: “Torque range”, “lang-nl”: “Momentbereik”, “lang-de”: “Drehmoment- bereich”, “lang-it”: “Range di coppia”, “lang-es”: “Rango de par”, “lang-fr”: “Plage de couple”, “lang-da”: “Momentområde”, “lang-tr”: “Tork araligi”} | {“lang-en”: “RPM”, “lang-nl”: “TPM”, “lang-de”: “Drehzahl”, “lang-it”: “GIRI/MIN”, “lang-es”: “RPM”, “lang-fr”: “t/min”, “lang-da”: “O/M”, “lang-tr”: “Devir/Dak”} | {“lang-en”: “Weight”, “lang-nl”: “Gewicht”, “lang-de”: “Gewicht”, “lang-it”: “Peso”, “lang-es”: “Peso”, “lang-fr”: “Poids”, “lang-da”: “Agirlik”, “lang-tr”: “Agirlik”} | {“lang-en”: “Dim. L”, “lang-nl”: “Afm. L”, “lang-de”: “Maße L”, “lang-it”: “Dim. L”, “lang-es”: “Dim. L”, “lang-fr”: “Dim. L”, “lang-da”: “Dim. L”, “lang-tr”: “Boyut L”} | {“lang-en”: “Dim. D”, “lang-nl”: “Afm. D”, “lang-de”: “Maße D”, “lang-it”: “Dim. D”, “lang-es”: “Dim. D”, “lang-fr”: “Dim. D”, “lang-da”: “Dim. D”, “lang-tr”: “Boyut D”} | {“lang-en”: “Dim. W”, “lang-nl”: “Afm. W”, “lang-de”: “Maße W”, “lang-it”: “Dim. W”, “lang-es”: “Dim. W”, “lang-fr”: “Dim. W”, “lang-da”: “Dim. W”, “lang-tr”: “Boyut W”} | {“lang-en”: “Dim. H”, “lang-nl”: “Afm. H”, “lang-de”: “Maße H”, “lang-it”: “Dim. H”, “lang-es”: “Dim. H”, “lang-fr”: “Dim. H”, “lang-da”: “Dim. H”, “lang-tr”: “Boyut H”} |
---|---|---|---|---|---|---|---|---|---|
🠋 30213 | B-RAD SELECT 275 | ½” | 50 – 270 Nm | 47,0 | 3,2 Kg | 228 mm | 63 mm | 67 mm | 262 mm |
🠋 29594 | B-RAD SELECT 275 | ¾” | 50 – 270 Nm | 47,0 | 3,2 Kg | 228 mm | 63 mm | 67 mm | 262 mm |
🠋 28264 | B-RAD SELECT 700 | ¾” | 170 – 700 Nm | 21,5 | 3,5 Kg | 231 mm | 63 mm | 67 mm | 262 mm |
🠋 28266 | B-RAD SELECT 1400 | ¾” | 270 – 1.400 Nm | 10,5 | 3,5 Kg | 231 mm | 63 mm | 67 mm | 262 mm |
🠋 28267 | B-RAD SELECT 1400-2 | ¾” | 540 – 1.400 Nm | 71,0 | 4,3 Kg | 279 mm | 63 mm | 67 mm | 262 mm |
🠋 28268 | B-RAD SELECT 2000 | 1″ | 400 – 2.000 Nm | 6,0 | 4,0 Kg | 244 mm | 69 mm | 69 mm | 262 mm |
🠋 28269 | B-RAD SELECT 2000-2 | 1″ | 400 – 2.000 Nm | 19,5 | 4,9 Kg | 298 mm | 69 mm | 69 mm | 262 mm |
🠋 28270 | B-RAD SELECT 4000 | 1″ | 800 – 4.000 Nm | 3,0 | 6,0 Kg | 285 mm | 81 mm | 81 mm | 266 mm |
🠋 28271 | B-RAD SELECT 4000-2 | 1″ | 800 – 4.000 Nm | 20,0 | 6,7 Kg | 337 mm | 81 mm | 81 mm | 266 mm |
🠋 28272 | B-RAD SELECT 7000 | 1½” | 1.350 – 7.000 Nm | 2,1 | 8,8 Kg | 295 mm | 95 mm | 95 mm | 272 mm |
Optional: 8.0 Ah high performance battery
The combination of new high-performance battery cells and completely newly developed electronic components in the pack ensure that maximum power remains available for a longer time. So you can now tighten even more bolts compared to the already impressively performing 5.2 Ah batteries.
The B-RAD SELECT / MB-RAD / B-RAD OFFSET 4000 & 7000 come standard with 1 x 8.0 Ah battery and 1 x 5.2 Ah battery, instead of 2 x 5.2 Ah batteries. Thanks to the 8.0 Ah battery, the extremely powerful battery torque wrenches can tighten even more bolts.
The 8.0 Ah battery can also be ordered for the B-RAD SELECT / OFFSET 275, 700, 1400 and 2000.
Part number: 200473
Optional: Double Safety Button
This system dramatically reduces the pinching risk with the reaction arm as it forces the operator to hold two hands on the tool handle at all times.
Part number: 25949
