Impact sockets

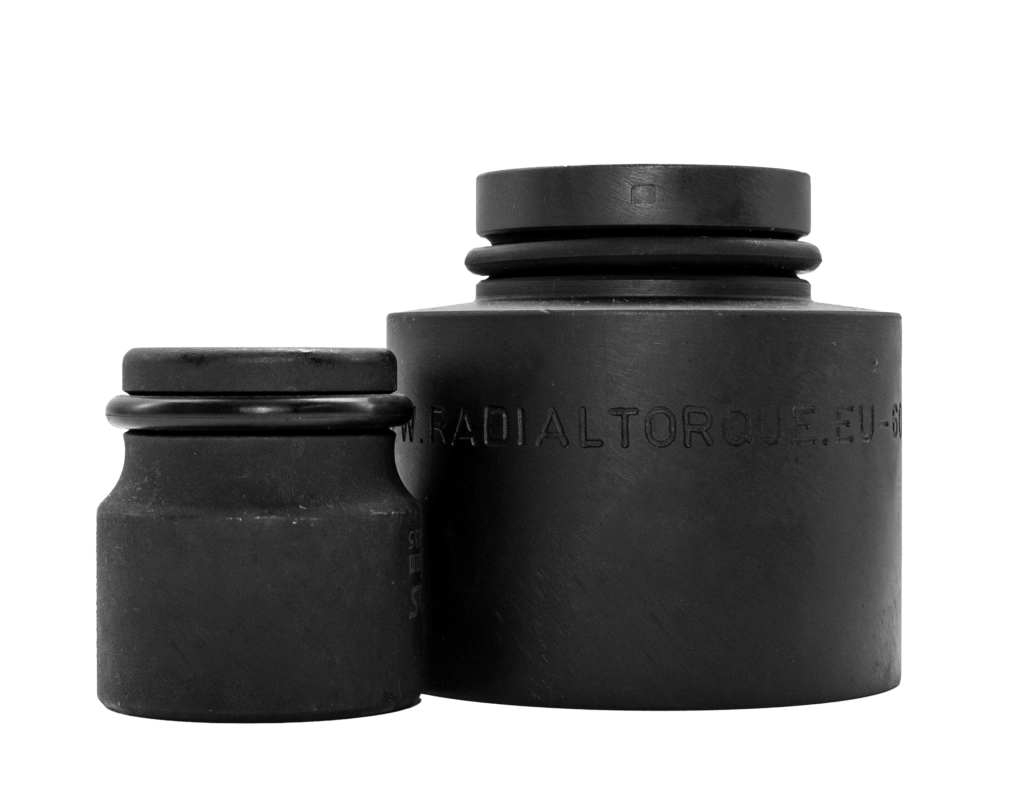

To complete your toolset, RAD offers a wide variety of impact sockets available in metric and imperial sizes. All impact sockets are made of hardened steel and manufactured according to RAD’s high quality standards. The impact sockets are equipped with a locking pin and an o-ring.
RADs standard metric impact sockets range can be found below. For other sizes, please consult your RAD contact person.
The RAD Socket Selector helps you to find the right socket based on 5 simple steps.
| {"lang-en": "Prod.no.", "lang-nl": "Art.nr.", "lang-de": "Prod.nr", "lang-it": "N. Prod.", "lang-es": "Prod. n.º", "lang-fr": "N° de prod.", "lang-da": "Prod.nr.", "lang-tr": "Ürün no."} | {"lang-en": "Socket size", "lang-nl": "Krachtdopmaat", "lang-de": "Kraftnussgröße", "lang-it": "Dimensione bussola", "lang-es": "Tamaño del casquillo de impacto", "lang-fr": "Dimension de la douille à choc"} | {"lang-en": "Thread size", "lang-nl": "Draadmaat", "lang-de": "Gewindegröße", "lang-it": "Dimensione filettatura", "lang-es": "Tamaño de rosca", "lang-fr": "Dimension du filetage"} | {"lang-en": "Square drive", "lang-nl": "Aandrijfvierkant", "lang-de": "Vierkant- antrieb", "lang-it": "Azionamento quadrato", "lang-es": "Accionamiento cuadrado", "lang-fr": "Entraînement à section carrée", "lang-da": "Firkantet drev", "lang-tr": "Kare tahrik ucu"} | {"lang-en": "HEX depth", "lang-nl": "Zeskant diepte", "lang-de": "Sechskanttiefe", "lang-it": "Profondità esagonale", "lang-es": "Profundidad hexagonal", "lang-fr": "Profondeur hexagonale"} | {"lang-en": "Overall length", "lang-nl": "Totale lengte", "lang-de": "Gesamtlänge", "lang-it": "Lunghezza totale", "lang-es": "Longitud total", "lang-fr": "Longueur totale"} | {"lang-en":"Standard reaction arm","lang-nl":"Standaard reactiearm","lang-de":"Standard Reaktionsarm","lang-it":"Standard braccio di reazione","lang-es":"Brazo de reacción estándar","lang-fr":"bras de réaction de couple standard"} | {"lang-en": "Torque range", "lang-nl": "Momentbereik", "lang-de": "Drehmoment- bereich", "lang-it": "Range di coppia", "lang-es": "Rango de par", "lang-fr": "Plage de couple", "lang-da": "Momentområde", "lang-tr": "Tork araligi"} |
|---|---|---|---|---|---|---|---|
| 222569 | 17 mm | M10 | ¾" | 17 mm | 51 mm | 10686 | 50 - 270 Nm |
| 222570 | 19 mm | M12 | |||||
| 222571 | 24 mm | M16 | |||||
| 222572 | 27 mm | M18 | |||||
| 222573 | 24 mm | M16 | ¾" | 32 mm | 65 mm | 19260 | 70 - 700 Nm |
| 222574 | 27 mm | M18 | |||||
| 222575 | 30 mm | M20 | |||||
| 222576 | 32 mm | M22 | |||||
| 222577 | 36 mm | M24 | |||||
| 222574 | 27 mm | M18 | ¾" | 32 mm | 65 mm | 19260 | 140 - 1.400 Nm |
| 222575 | 30 mm | M20 | |||||
| 222576 | 32 mm | M22 | |||||
| 222577 | 36 mm | M24 | |||||
| 222581 | 41 mm | M27 | |||||
| 222582 | 46 mm | M30 | |||||
| 222583 | 50 mm | M32 | |||||
| 222584 | 36 mm | M24 | 1" | 40 mm | 79 mm | 14213 | 200 - 2/000 Nm |
| 222585 | 41 mm | M27 | |||||
| 222586 | 46 mm | M30 | |||||
| 222587 | 50 mm | M33 | |||||
| 222588 | 55 mm | M36 | |||||
| 222589 | 46 mm | M30 | 1" | 45 mm | 74 mm | 24639 | 400 - 4.000 Nm |
| 222590 | 50 mm | M33 | |||||
| 222591 | 55 mm | M36 | |||||
| 222592 | 60 mm | M39 | |||||
| 222593 | 65 mm | M42 | |||||
| 222594 | 55 mm | M36 | 1½" | 55 mm | 93 mm | 25286 | 700 - 7.000 Nm |
| 222595 | 60 mm | M39 | |||||
| 222596 | 70 mm | M45 | |||||
| 222597 | 75 mm | M48 | |||||
| 222598 | 80 mm | M49 |

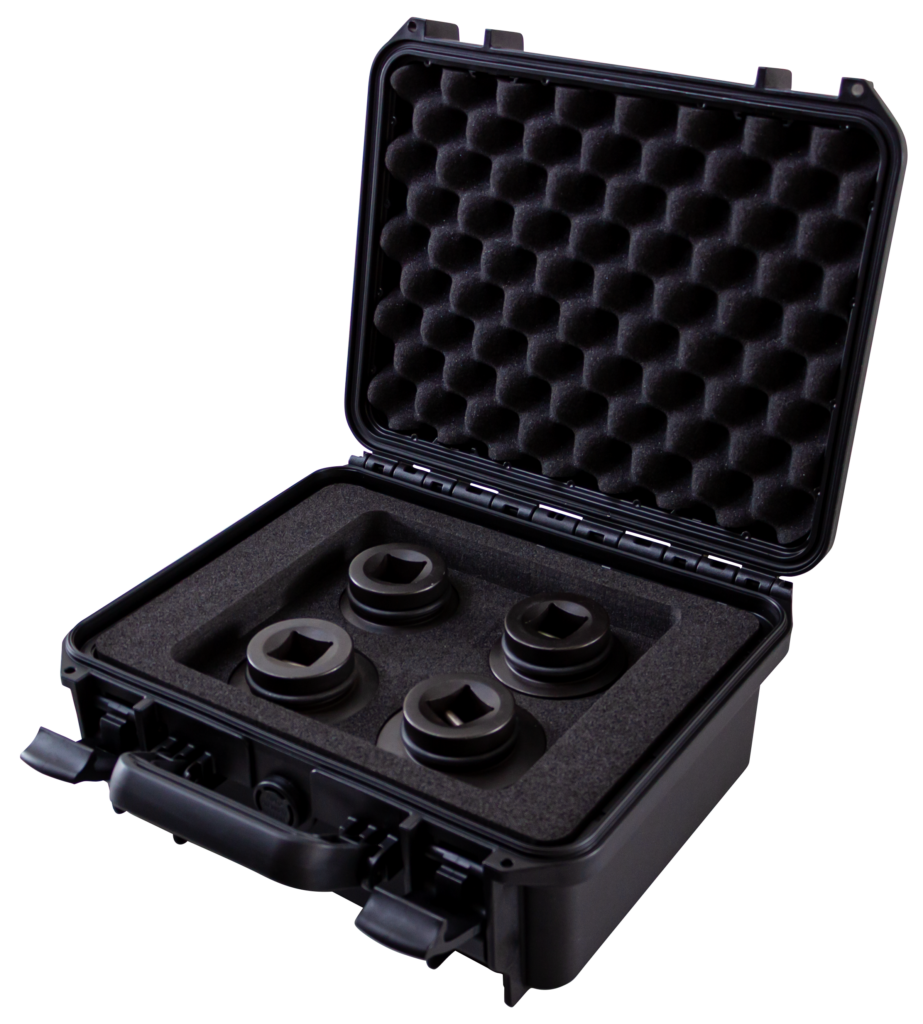

| {"lang-en": "Prod. no set", "lang-nl": "Art.nr. set", "lang-de": "Prod.nr. Satz", "lang-it": "Set N. Prod.", "lang-es": "Set Prod. n.º", "lang-fr": "Jeu N° de prod."} | {"lang-en": "Model", "lang-nl": "Model", "lang-de": "Modell", "lang-it": "Modello", "lang-es": "Modelo", "lang-fr": "Modèle", "lang-da": "Model", "lang-tr": "Model"} | {"lang-en": "Included prod.nos.", "lang-nl": "Inbegrepen art.nrs.", "lang-de": "Inbegriffene Prod.nrn.", "lang-it": "N. Prod. inclusi", "lang-es": "Prod. n.º incluidos", "lang-fr": "N° de prod. inclus", "lang-da": "Inkluderede Prod.nr.", "lang-tr": "Dahil ürün no."} | {"lang-en": "Socket sizes", "lang-nl": "Krachtdopmaten", "lang-de": "Kraftnussgrößen", "lang-it": "Dimensioni bussola", "lang-es": "Tamaños del casquillo de impacto", "lang-fr": "Dimensions de la douille à choc"} | {"lang-en": "Thread sizes", "lang-nl": "Draadmaten", "lang-de": "Gewindegrößen", "lang-it": "Dimensioni filettatura", "lang-es": "Tamaños de rosca", "lang-fr": "Dimensions du filetage"} | {"lang-en": "Square drive", "lang-nl": "Aandrijfvierkant", "lang-de": "Vierkant- antrieb", "lang-it": "Azionamento quadrato", "lang-es": "Accionamiento cuadrado", "lang-fr": "Entraînement à section carrée", "lang-da": "Firkantet drev", "lang-tr": "Kare tahrik ucu"} | {"lang-en": "HEX depth", "lang-nl": "Zeskant diepte", "lang-de": "Sechskanttiefe", "lang-it": "Profondità esagonale", "lang-es": "Profundidad hexagonal", "lang-fr": "Profondeur hexagonale"} | {"lang-en": "Overall length", "lang-nl": "Totale lengte", "lang-de": "Gesamtlänge", "lang-it": "Lunghezza totale", "lang-es": "Longitud total", "lang-fr": "Longueur totale"} | {"lang-en":"Standard reaction arm","lang-nl":"Standaard reactiearm","lang-de":"Standard Reaktionsarm","lang-it":"Standard braccio di reazione","lang-es":"Brazo de reacción estándar","lang-fr":"bras de réaction de couple standard"} | {"lang-en": "Torque range", "lang-nl": "Momentbereik", "lang-de": "Drehmoment- bereich", "lang-it": "Range di coppia", "lang-es": "Rango de par", "lang-fr": "Plage de couple", "lang-da": "Momentområde", "lang-tr": "Tork araligi"} |
|---|---|---|---|---|---|---|---|---|---|
| 200770 | Socket set B-RAD 275 | 222569, 222570, 222571, 222572 | 17 mm, 19 mm, 24 mm, 27 mm | M10, M12, M16, M18 | ¾" | 17 | 51 mm | 10686 | 50 - 270 Nm |
| 200771 | Socket set B-RAD 700 | 222574, 222575, 222576, 222577 | 27 mm, 30 mm, 32 mm, 36 mm | M18, M20, M22, M24 | ¾" | 32 | 65 mm | 19260 | 70 - 700 Nm |
| 200772 | Socket set B-RAD 1400 | 222576, 222577, 222581, 222582 | 32 mm, 36 mm, 41 mm, 46 mm | M22, M24, M27, M30 | ¾" | 32 | 65 mm | 19260 | 140 - 1.400 Nm |
| 200773 | Socket set B-RAD 2000 | 222585, 222586, 222587, 222588 | 41 mm, 46 mm, 50 mm, 55 mm | M27, M30, M33, M36 | 1" | 40 mm | 79 mm | 14213 | 200 - 2.000 Nm |
| 200774 | Socket set B-RAD 4000 | 222589, 222590, 222591, 222592 | 46 mm, 50 mm, 55 mm, 60 mm | M30, M33, M36, M39 | 1" | 45 mm | 74 mm | 24639 | 400 - 4.000 Nm |
| 200775 | Socket set B-RAD 7000 | 222595, 222596, 222597, 222598 | 60 mm, 70 mm, 75 mm, 80 mm | M39, M45, M48, M49 | 1½" | 55 mm | 93 mm | 25286 | 700 - 7.000 Nm |
