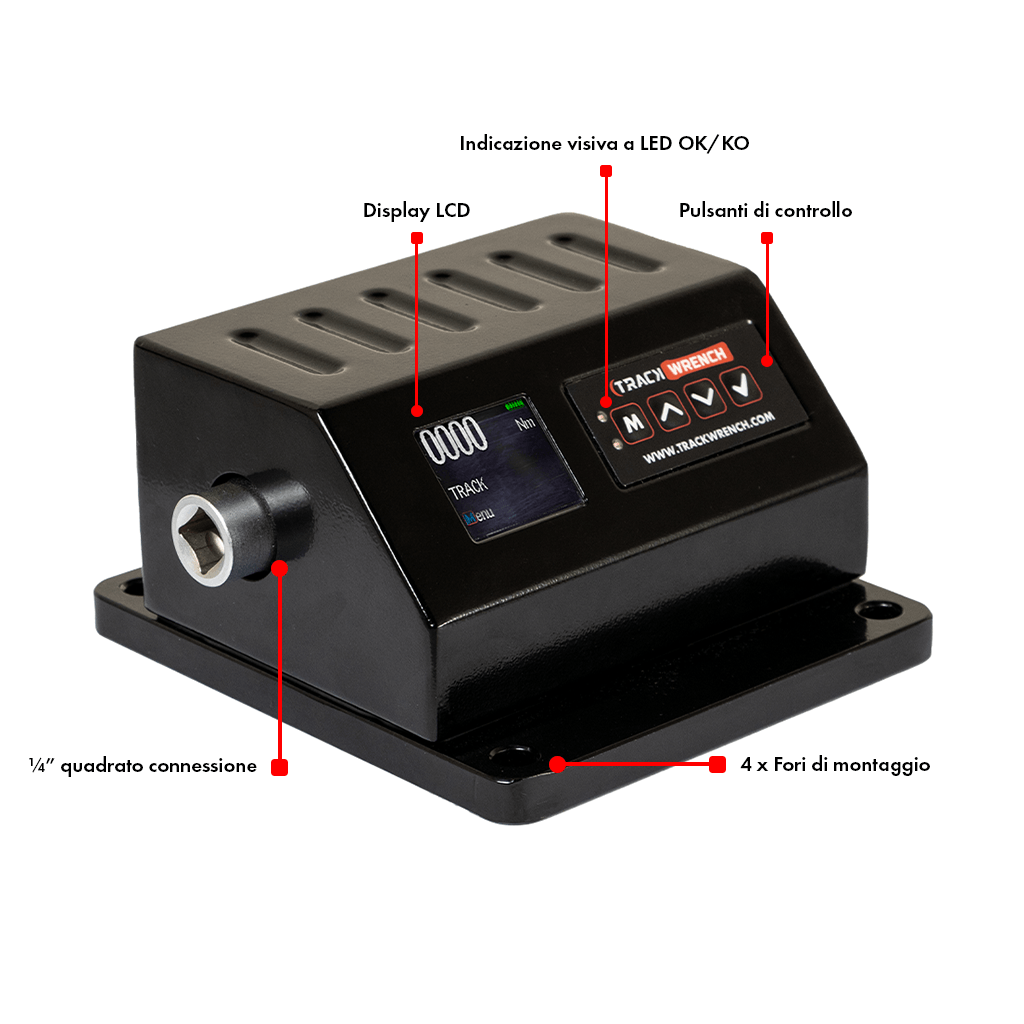

Benchtype Torque Tester BTT020
Prezzo: €1.025
- Range disponibile: 2 – 20 Nm
- SKU BTT020: 222164
Verifica – Facile da utilizzare
- Deviazione massima: circa 1%
- La coppia di serraggio può essere verificata utilizzando dei preset di coppia
- Registrazione del primo picco e del picco dinamico
- Utensili di verifica a trasmissione continua (max. 1200 giri/min.) e utensili dinamometrici con azionamento manuale
- Lingue disponibili: inglese, tedesco, francese, spagnolo, italiano, russo, polacco, portoghese, cinese
- Unità di misura: Nm, ozf.in, lbf.in, lbf.ft, kgf.cm, kgf.m
Validazione dell’utensile
Eseguire controlli periodici per confermare che le chiavi dinamometriche funzionino entro le tolleranze
Supporto alla formazione
Verificare le prestazioni dell’utente con sia First Peak che Final Peak disponibili in modalità Click-Torque
Solidità e accuratezza
Materiali avanzati indicati per un uso rigoroso e verifiche dall’alto grado di accuratezza.
Tracciabilità
Gegevensoverdracht via USB naar pc-software of door gebruik te maken van een van onze draTrasferimento dei i dati tramite USB al programma installato sul PC o possibilità di passare a una delle nostre opzioni wireless.aadloze opties.
Funzionalità disponibili su richiesta:
Aggiornamento Bluetooth - SKU 221210
Gamma di prodotti
| {“lang-en”: “Model”, “lang-nl”: “Model”, “lang-de”: “Modell”, “lang-it”: “Modello”, “lang-es”: “Modelo”, “lang-fr”: “Modèle”, “lang-da”: “Model”, “lang-tr”: “Model”} | {“lang-en”: “Torque range”, “lang-nl”: “Momentbereik”, “lang-de”: “Drehmoment- bereich”, “lang-it”: “Range di coppia”, “lang-es”: “Rango de par”, “lang-fr”: “Plage de couple”, “lang-da”: “Momentområde”, “lang-tr”: “Tork araligi”} | {“lang-en”: “Socket”, “lang-nl”: “Ingangsdrijving”, “lang-de”: “Socket”, “lang-it”: “Socket”, “lang-es”: “Socket”, “lang-fr”: “Socket”, “lang-da”: “Socket”, “lang-tr”: “Socket”} | {“lang-en”: “Dim. H”, “lang-nl”: “Afm. H”, “lang-de”: “Maße H”, “lang-it”: “Dim. H”, “lang-es”: “Dim. H”, “lang-fr”: “Dim. H”, “lang-da”: “Dim. H”, “lang-tr”: “Boyut H”} | {“lang-en”: “Weight”, “lang-nl”: “Gewicht”, “lang-de”: “Gewicht”, “lang-it”: “Peso”, “lang-es”: “Peso”, “lang-fr”: “Poids”, “lang-da”: “Agirlik”, “lang-tr”: “Agirlik”} |
|---|---|---|---|---|
| DTT010 | 1-10 Nm | ¼” | 75 mm | 0,7 Kg |
| DTT020 | 2-20 Nm | ¼” | 75 mm | 0,7 Kg |
| DTT050 | 5-50 Nm | ⅜” | 120 mm | 1,2 Kg |
| DTT100 | 10-100 Nm | ⅜” | 120 mm | 1,2 Kg |
| DTT200 | 20-200 Nm | ½” | 120 mm | 1,2 Kg |
| DTT340 | 34-340 Nm | ½” | 120 mm | 1,2 Kg |
| DTT600 | 60-600 Nm | ¾” | 135 mm | 1,6 Kg |
| DTT800 | 80-800 Nm | ¾” | 147 mm | 2,8 Kg |
| DTT1000 | 100-1.000 Nm | ¾” | 147 mm | 2,8 Kg |
| DTT1500 | 150-1.500 Nm | 1″ | 177 mm | 3,8 Kg |
| DTT2000 | 200-2.000 Nm | 1″ | 177 mm | 3,8 Kg |
| BTT020 | 2-20 Nm | ¼” | 88 mm | n/a |
| BTT050 | 5-50 Nm | ⅜” | 88 mm | n/a |
| BTT135 | 13,5-135 Nm | ⅜” | 88 mm | n/a |
| BTT200 | 20-200 Nm | ½” | 88 mm | n/a |
| BTT340 | 34-340 Nm | ½” | 88 mm | n/a |
| BTT1000 | 100-1.000 Nm | 1″ | 88 mm | n/a |
| BTT1500 | 150-1.500 Nm | 1″ | 88 mm | n/a |
*Inclina lo schermo per una visione ottimale
| {“lang-en”: “Model”, “lang-nl”: “Model”, “lang-de”: “Modell”, “lang-it”: “Modello”, “lang-es”: “Modelo”, “lang-fr”: “Modèle”, “lang-da”: “Model”, “lang-tr”: “Model”} | {“lang-en”: “Torque range”, “lang-nl”: “Momentbereik”, “lang-de”: “Drehmoment- bereich”, “lang-it”: “Range di coppia”, “lang-es”: “Rango de par”, “lang-fr”: “Plage de couple”, “lang-da”: “Momentområde”, “lang-tr”: “Tork araligi”} | {“lang-en”: “Socket”, “lang-nl”: “Ingangsdrijving”, “lang-de”: “Socket”, “lang-it”: “Socket”, “lang-es”: “Socket”, “lang-fr”: “Socket”, “lang-da”: “Socket”, “lang-tr”: “Socket”} | {“lang-en”: “Dim. H”, “lang-nl”: “Afm. H”, “lang-de”: “Maße H”, “lang-it”: “Dim. H”, “lang-es”: “Dim. H”, “lang-fr”: “Dim. H”, “lang-da”: “Dim. H”, “lang-tr”: “Boyut H”} | {“lang-en”: “Weight”, “lang-nl”: “Gewicht”, “lang-de”: “Gewicht”, “lang-it”: “Peso”, “lang-es”: “Peso”, “lang-fr”: “Poids”, “lang-da”: “Agirlik”, “lang-tr”: “Agirlik”} |
|---|---|---|---|---|
| DTT010 | 1-10 Nm | ¼” | 75 mm | 0,7 Kg |
| DTT020 | 2-20 Nm | ¼” | 75 mm | 0,7 Kg |
| DTT050 | 5-50 Nm | ⅜” | 120 mm | 1,2 Kg |
| DTT100 | 10-100 Nm | ⅜” | 120 mm | 1,2 Kg |
| DTT200 | 20-200 Nm | ½” | 120 mm | 1,2 Kg |
| DTT340 | 34-340 Nm | ½” | 120 mm | 1,2 Kg |
| DTT600 | 60-600 Nm | ¾” | 135 mm | 1,6 Kg |
| DTT800 | 80-800 Nm | ¾” | 147 mm | 2,8 Kg |
| DTT1000 | 100-1.000 Nm | ¾” | 147 mm | 2,8 Kg |
| DTT1500 | 150-1.500 Nm | 1″ | 177 mm | 3,8 Kg |
| DTT2000 | 200-2.000 Nm | 1″ | 177 mm | 3,8 Kg |
| BTT020 | 2-20 Nm | ¼” | 88 mm | n/a |
| BTT050 | 5-50 Nm | ⅜” | 88 mm | n/a |
| BTT135 | 13,5-135 Nm | ⅜” | 88 mm | n/a |
| BTT200 | 20-200 Nm | ½” | 88 mm | n/a |
| BTT340 | 34-340 Nm | ½” | 88 mm | n/a |
| BTT1000 | 100-1.000 Nm | 1″ | 88 mm | n/a |
| BTT1500 | 150-1.500 Nm | 1″ | 88 mm | n/a |
Caratteristiche
| {“lang-en”: “Features”, “lang-nl”: “Functies”, “lang-de”: “Features”, “lang-it”: “Features”, “lang-es”: “Features”, “lang-fr”: “Features”, “lang-da”: “Features”, “lang-tr”: “Features”} | DTT | BTT |
|---|---|---|
| {“lang-en”: “Track”, “lang-nl”: “Track (torque tracking met aanhaalmoment weergave)”, “lang-de”: “Track”, “lang-it”: “Track”, “lang-es”: “Track”, “lang-fr”: “Track”, “lang-da”: “Track”, “lang-tr”: “Track”} | {“lang-en”: “Yes”, “lang-nl”: “Ja”, “lang-de”: “Yes”, “lang-it”: “Yes”, “lang-es”: “Yes”, “lang-fr”: “Yes”, “lang-da”: “Yes”, “lang-tr”: “Yes”} | {“lang-en”: “Yes”, “lang-nl”: “Ja”, “lang-de”: “Yes”, “lang-it”: “Yes”, “lang-es”: “Yes”, “lang-fr”: “Yes”, “lang-da”: “Yes”, “lang-tr”: “Yes”} |
| {“lang-en”: “Peak”, “lang-nl”: “Aanhaalmoment Piekwaarde”, “lang-de”: “Peak”, “lang-it”: “Peak”, “lang-es”: “Peak”, “lang-fr”: “Peak”, “lang-da”: “Peak”, “lang-tr”: “Peak”} | {“lang-en”: “Yes”, “lang-nl”: “Ja”, “lang-de”: “Yes”, “lang-it”: “Yes”, “lang-es”: “Yes”, “lang-fr”: “Yes”, “lang-da”: “Yes”, “lang-tr”: “Yes”} | {“lang-en”: “Yes”, “lang-nl”: “Ja”, “lang-de”: “Yes”, “lang-it”: “Yes”, “lang-es”: “Yes”, “lang-fr”: “Yes”, “lang-da”: “Yes”, “lang-tr”: “Yes”} |
| {“lang-en”: “Presets”, “lang-nl”: “Voorkeuze instelling”, “lang-de”: “Presets”, “lang-it”: “Presets”, “lang-es”: “Presets”, “lang-fr”: “Presets”, “lang-da”: “Presets”, “lang-tr”: “Presets”} | 99 | 99 |
| {“lang-en”: “Click Torque”, “lang-nl”: “Klik momentsleutels”, “lang-de”: “Click Torque”, “lang-it”: “Click Torque”, “lang-es”: “Click Torque”, “lang-fr”: “Click Torque”, “lang-da”: “Click Torque”, “lang-tr”: “Click Torque”} | {“lang-en”: “Yes”, “lang-nl”: “Ja”, “lang-de”: “Yes”, “lang-it”: “Yes”, “lang-es”: “Yes”, “lang-fr”: “Yes”, “lang-da”: “Yes”, “lang-tr”: “Yes”} | {“lang-en”: “Yes”, “lang-nl”: “Ja”, “lang-de”: “Yes”, “lang-it”: “Yes”, “lang-es”: “Yes”, “lang-fr”: “Yes”, “lang-da”: “Yes”, “lang-tr”: “Yes”} |
| {“lang-en”: “Dynamic Preset”, “lang-nl”: “Dynamische voorkeuze instelling”, “lang-de”: “Dynamic Preset”, “lang-it”: “Dynamic Preset”, “lang-es”: “Dynamic Preset”, “lang-fr”: “Dynamic Preset”, “lang-da”: “Dynamic Preset”, “lang-tr”: “Dynamic Preset”} | {“lang-en”: “Yes”, “lang-nl”: “Ja”, “lang-de”: “Yes”, “lang-it”: “Yes”, “lang-es”: “Yes”, “lang-fr”: “Yes”, “lang-da”: “Yes”, “lang-tr”: “Yes”} | {“lang-en”: “Yes”, “lang-nl”: “Ja”, “lang-de”: “Yes”, “lang-it”: “Yes”, “lang-es”: “Yes”, “lang-fr”: “Yes”, “lang-da”: “Yes”, “lang-tr”: “Yes”} |
| {“lang-en”: “PC Software”, “lang-nl”: “PC Software”, “lang-de”: “PC Software”, “lang-it”: “PC Software”, “lang-es”: “PC Software”, “lang-fr”: “PC Software”, “lang-da”: “PC Software”, “lang-tr”: “PC Software”} | {“lang-en”: “Yes”, “lang-nl”: “Ja”, “lang-de”: “Yes”, “lang-it”: “Yes”, “lang-es”: “Yes”, “lang-fr”: “Yes”, “lang-da”: “Yes”, “lang-tr”: “Yes”} | {“lang-en”: “Yes”, “lang-nl”: “Ja”, “lang-de”: “Yes”, “lang-it”: “Yes”, “lang-es”: “Yes”, “lang-fr”: “Yes”, “lang-da”: “Yes”, “lang-tr”: “Yes”} |
*Inclina lo schermo per una visione ottimale
| {“lang-en”: “Features”, “lang-nl”: “Functies”, “lang-de”: “Features”, “lang-it”: “Features”, “lang-es”: “Features”, “lang-fr”: “Features”, “lang-da”: “Features”, “lang-tr”: “Features”} | DTT | BTT |
|---|---|---|
| {“lang-en”: “Track”, “lang-nl”: “Track (torque tracking met aanhaalmoment weergave)”, “lang-de”: “Track”, “lang-it”: “Track”, “lang-es”: “Track”, “lang-fr”: “Track”, “lang-da”: “Track”, “lang-tr”: “Track”} | {“lang-en”: “Yes”, “lang-nl”: “Ja”, “lang-de”: “Yes”, “lang-it”: “Yes”, “lang-es”: “Yes”, “lang-fr”: “Yes”, “lang-da”: “Yes”, “lang-tr”: “Yes”} | {“lang-en”: “Yes”, “lang-nl”: “Ja”, “lang-de”: “Yes”, “lang-it”: “Yes”, “lang-es”: “Yes”, “lang-fr”: “Yes”, “lang-da”: “Yes”, “lang-tr”: “Yes”} |
| {“lang-en”: “Peak”, “lang-nl”: “Aanhaalmoment Piekwaarde”, “lang-de”: “Peak”, “lang-it”: “Peak”, “lang-es”: “Peak”, “lang-fr”: “Peak”, “lang-da”: “Peak”, “lang-tr”: “Peak”} | {“lang-en”: “Yes”, “lang-nl”: “Ja”, “lang-de”: “Yes”, “lang-it”: “Yes”, “lang-es”: “Yes”, “lang-fr”: “Yes”, “lang-da”: “Yes”, “lang-tr”: “Yes”} | {“lang-en”: “Yes”, “lang-nl”: “Ja”, “lang-de”: “Yes”, “lang-it”: “Yes”, “lang-es”: “Yes”, “lang-fr”: “Yes”, “lang-da”: “Yes”, “lang-tr”: “Yes”} |
| {“lang-en”: “Presets”, “lang-nl”: “Voorkeuze instelling”, “lang-de”: “Presets”, “lang-it”: “Presets”, “lang-es”: “Presets”, “lang-fr”: “Presets”, “lang-da”: “Presets”, “lang-tr”: “Presets”} | 99 | 99 |
| {“lang-en”: “Click Torque”, “lang-nl”: “Klik momentsleutels”, “lang-de”: “Click Torque”, “lang-it”: “Click Torque”, “lang-es”: “Click Torque”, “lang-fr”: “Click Torque”, “lang-da”: “Click Torque”, “lang-tr”: “Click Torque”} | {“lang-en”: “Yes”, “lang-nl”: “Ja”, “lang-de”: “Yes”, “lang-it”: “Yes”, “lang-es”: “Yes”, “lang-fr”: “Yes”, “lang-da”: “Yes”, “lang-tr”: “Yes”} | {“lang-en”: “Yes”, “lang-nl”: “Ja”, “lang-de”: “Yes”, “lang-it”: “Yes”, “lang-es”: “Yes”, “lang-fr”: “Yes”, “lang-da”: “Yes”, “lang-tr”: “Yes”} |
| {“lang-en”: “Dynamic Preset”, “lang-nl”: “Dynamische voorkeuze instelling”, “lang-de”: “Dynamic Preset”, “lang-it”: “Dynamic Preset”, “lang-es”: “Dynamic Preset”, “lang-fr”: “Dynamic Preset”, “lang-da”: “Dynamic Preset”, “lang-tr”: “Dynamic Preset”} | {“lang-en”: “Yes”, “lang-nl”: “Ja”, “lang-de”: “Yes”, “lang-it”: “Yes”, “lang-es”: “Yes”, “lang-fr”: “Yes”, “lang-da”: “Yes”, “lang-tr”: “Yes”} | {“lang-en”: “Yes”, “lang-nl”: “Ja”, “lang-de”: “Yes”, “lang-it”: “Yes”, “lang-es”: “Yes”, “lang-fr”: “Yes”, “lang-da”: “Yes”, “lang-tr”: “Yes”} |
| {“lang-en”: “PC Software”, “lang-nl”: “PC Software”, “lang-de”: “PC Software”, “lang-it”: “PC Software”, “lang-es”: “PC Software”, “lang-fr”: “PC Software”, “lang-da”: “PC Software”, “lang-tr”: “PC Software”} | {“lang-en”: “Yes”, “lang-nl”: “Ja”, “lang-de”: “Yes”, “lang-it”: “Yes”, “lang-es”: “Yes”, “lang-fr”: “Yes”, “lang-da”: “Yes”, “lang-tr”: “Yes”} | {“lang-en”: “Yes”, “lang-nl”: “Ja”, “lang-de”: “Yes”, “lang-it”: “Yes”, “lang-es”: “Yes”, “lang-fr”: “Yes”, “lang-da”: “Yes”, “lang-tr”: “Yes”} |
